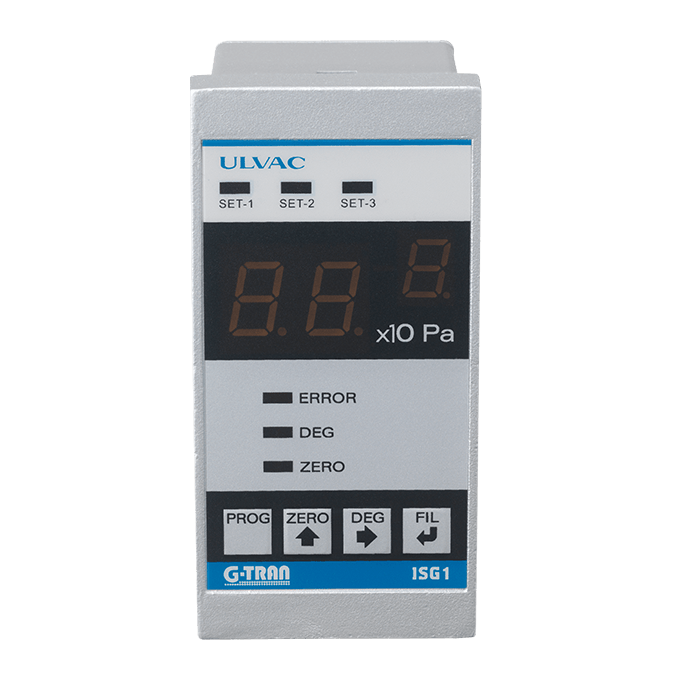

Model: ISG-1
Display Unit
This single channel vacuum gauge display is compatible with all "Model:G-TRAN" and "Model:CCM" sensors.
Enables users to view system status at a glance.
Product Fillter
Model: ISG1
Features
- Compatible with all “Model:G-Tran”, and capacitance manometer “Model:CCM”
- Control output signal:3 set- point output
- Operates in DC 24V power input (100V AC to 240V AC optional AC adapter)
- Output signal:Linear 0 to10V
- Serial communication type:RS485 communication is standard
- High visibility LED
- Compatible with DIN standards (compact in size of 48 X 96 mm)
- CE compliant
Applications
- Vacuum systems which require pressure value display
- Systems which require many set points
Specifications
| Model | ISG1 | ||
| Connectable sensor units | 1 unit | ||
| Compatible sensor unit | “Model:G-TRAN” Pirani vacuum gauge SW100, Pirani vacuum gauge SP1, Multi ionization gauge (hot cathode gauge) ST200, Multi ionization gauge (hot cathode gauge) SH200, Cold cathode gauge SC1, Capacitance manometer CCMT-D |
||
| Display | Significand: 2 digit, Exponent: 1 digit digital □.□×10□ | ||
| Scale | Pa | ||
| Range | Depends on each sensor unit's pressure range | ||
| Update time | 200ms | ||
| Accuracy | ±2%±1 digit respect to pressure value from measurement unit (“Model:CCM”:±4% digit at below 1/10 of full scale) | ||
| Data output | DC 0 to 10V simulatied Log output, Log, linear output ＊Note: Output differs among each unit | ||
| Update time | 70ms | ||
| Resolution | 1mV | ||
| Accuracy | ±10mV respect to pressure value converted to voltage | ||
| Sampling time | 70ms running average in 5 times | ||
| Control input signal | Open collector input, negative logic | ||
| Filament lighting signal, Atmosphere pressure adjustment etc. | |||
| Set point 1, 2, 3 | |||
| Control output signal | Open collector output, Negative logic [[rating: 30VMAX, 50mAWAX, 70mW] | ||
| Error signal, Filament lighting signal etc. | |||
| Set point 1, 2, 3 | |||
| Serial communication type | RS-485 | ||
| LED display | ERROR | SET-1 | |
| DEG | SET-2 | ||
| ZERO | SET-3 | ||
| Power voltage | DC24V±1V Ripple, noise less than 1% | ||
| Current consumption | 2W (Display unit only) ＊other connected unit's consumption will be added | ||
| Input/output connector | Sensor connector: D-sub15-socket (M2.6 screw) | ||
| I/O connector: D-sub15-pin (M2.6 screw) | |||
| Power supply connector: PHOENIX: MSTB 2, 5/3-STF, 08 | |||
| Operating temperature range | 10 to 40℃ (50 to 104°F) | ||
| Operating humidity range | 15 to 80% (not condensing) | ||
| Weight | 250g | ||
| Dimension W×D×H | DIN 48mm×70mm×96mm (JIS rack size 50mm×70mm×100mm is also available) | ||
| Accessories | Power supply connector: PHOENIX: MSTB 2, 5/3-STF-5, 08 1pc | ||
| DIN panel fixture: Fixture brackets 2pc | |||
| Instruction manual: Standard paper 1pc | |||
| Option | Sensor connectors: D-sub15-pin (M2.6 screw) 1pc | ||
| I/O connector: D-sub15-socket (M2.6 screw) 1pc | |||
| Applicable standard | CE | ||
