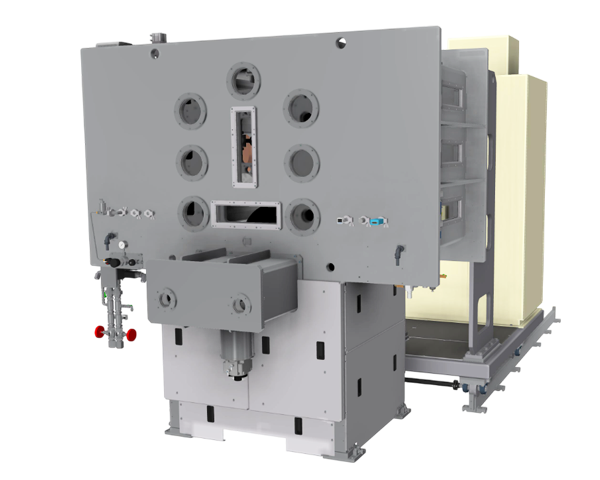

Model：EWL
Evaporation System
This roll-to-roll deposition system heats and vaporizes lithium under vacuum. It is the optimal method for producing ultra-thin lithium with a high-quality surface.
Model: EWL
Features
- The advanced winding control system enables ultra-thin copper foil to be conveyed wrinkle-free.
- Designed to minimize lithium material waste effectively.
Applications
R&D of lithium metal anodes for all-solid-state batteries, high-capacity batteries, and related applications.
Specifications
| Model | EWL-030 |
| Evaporation Material | Li |
| Web Material | Cu foil |
| Web Thickness | 6～10μm |
| Deposition side | Single |
| Web Width | Max 300mm |
| Winding speed | Max 10m/min |
| Film roll diameter | Max Φ220mm/core 3 inch |
| material shape | Ingots/wire, etc. |
