Model：EWG
Evaporation System

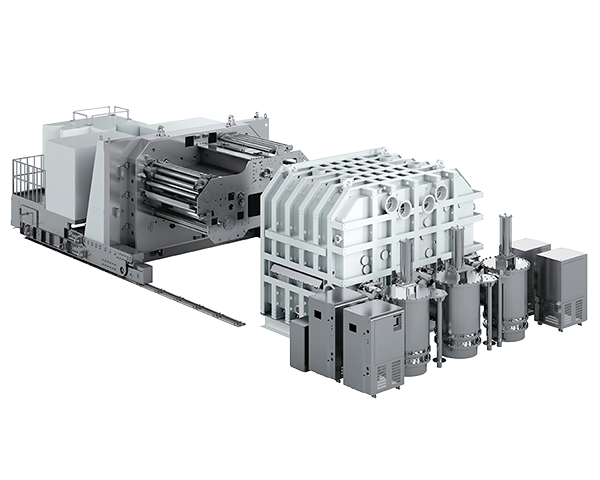

RH heating type roll coater for deposit aluminum on plastic film for rechargeable batteries.
Model: EWG
Features
- Our proprietary film deposition technology significantly enhances substrate cooling efficiency, reducing heat damage during the evaporation process.
- The advanced winding control system enables stable, high-speed winding of ultra-thin films.
- Equipped with rollers to prevent wrinkles
- Achieves high productivity through double-sided simultaneous film deposition technology.
Applications
- Current collector for batteries
Specifications
| Model | EWG-165 |
| Evaporation Material | Al |
| Web Material | PET |
| Web Thickness | 4.5 - 8μm |
| Deposition side | Double-sided |
| Web Width | Max 1700mm |
| Winding speed | Max 500m/min |
| Film roll diameter | Max Φ600mm/Core 150mm |
