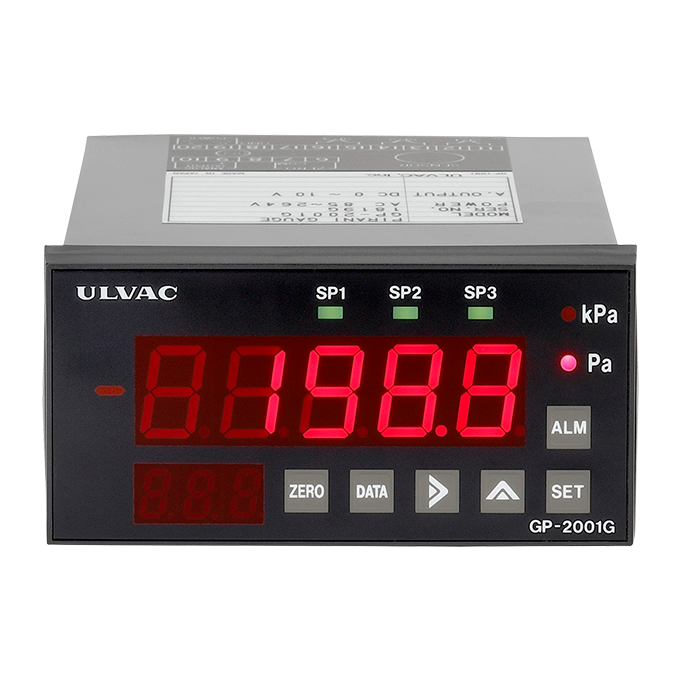

Model: GPｰ2001G

Model: GPｰ2001G

Pirani Vacuum Gauge

GP-2001G is a constant-temperature Pirani vacuum gauge that works using the thermal conduction of gas. Setpoint outputs are provided as standard for controlling vacuum equipment. And it has been made compact to make effective use of the system panels.


Features

  • No re-calibration is needed after changing gauge head cable length.
  • Built-in temperature compensation circuit reduces effect of ambient temperature changes on measured values.
  • Independent set point output (3 points).

Applications

  • Pressure measurement for rough evacuation systems
  • Pressure monitors in evacuation systems
  • Process control for vacuum application devices

Specifications

Model GP-2001G
Measurable pressure range 0.4 to 3000Pa
Accuracy ±15%(51-760Pa)
±30%(10-1000Pa)
±50%(0.4-3000Pa)
Display LED
Communication serial -
Measurement value output DC1.5 to 11.5V
1. Linear output 0 0 to 10V:
0 to 3000 Pa 0 to 22.5 Torr, 0 to 30 mbar
2. Linear output 1 0 to 10V:
0 to 1000 Pa 0 to 7.5 Torr, 0 to 10 mbar
3. Linear output 2 0 to 10V:
0 to 100 Pa 0 to 0.75 Torr, 0 to 1 mbar
Set points 3 points(open collector output)​
Operating temperature range 10 to 40℃ (50 to 104°F)
Power supply voltage AC100V to 240V
Controller weight Controller: 0.4kg
Accessories Input / Output connector 1
Power cable 3m×1(option)
Quick manual 1
Options WP-01, 02, 03, 16, WPB　Sensor head
GP-H, GP-BH+special cable（WPB-10-034）
Sensor head cable： 2, 5, 10, 15, 20, 25, 30, 50, 100m
