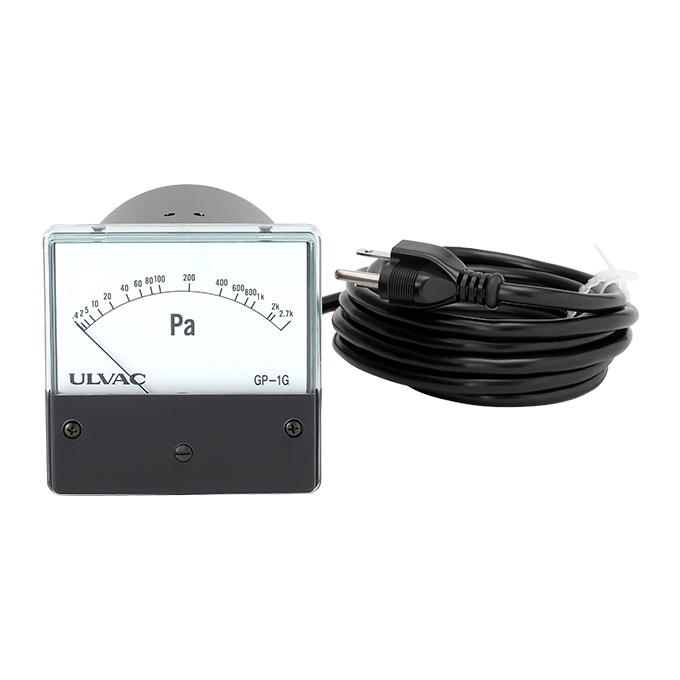

Model: GP-1G / GP-1G with case

Model: GPｰ1G / G-1G with Case

Pirani Vacuum Gauge

The GP-1G is a constant temperature Pirani vacuum gauge that works using the thermal conductivity of gas. It is possible to easily measure pressure in the low vacuum range.


Features

  • No re-calibration is needed after changing gauge head cable length
  • Employs proven gauge heads
  • Corrosion-resistant platinum (Pt) is employed as filament material
  • DC 0 to 10 mV recorder output as standard

Applications

  • Pressure measurement in roughing pumping systems
  • Pressure monitoring in various vacuum pumping systems

Specifications

Model GP-1G / GP-1G with Case
Measurable pressure range 0.4 - 2700Pa
Pressure unit Pa
Measurement locations 1
Accuracy ±3% of full scale (linear scale conversion)
Display Analog indication
Measurement value output DC 0 to 10mV Nonlinear output
Set points ー
Communication serial／Digital output ー
Operating temperature range 10 to 40℃ (50 to 104°F)
Operating humidity range 15 to 18% (not condensing)
Power supply voltage AC100 to 240V
10VA
Dimension　W×D×H 100×130×100mm
Controller weight 0.7kg
Detection unit （GP-H）：35g
Accessories Power cable 3m (with controller)
Input / output connector ー
Quick manual 1
Options Sensor head Various types of gauge heads including WP-01, 02, 03, 16, and WPB-10-034
Detection unit GP-H, GP-BH special cable (WPB-10-034)
Sensor head cable 2, 5, 10, 15, 20, 25, 30, 50, 100m
