Model: FVC

Model：FVC

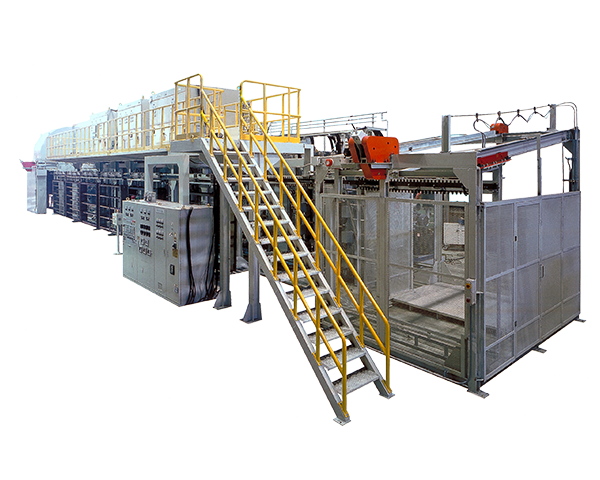

Vacuum Furnace

The FVC systems are designed for brazing not only aluminum heat exchangers such as radiators, evaporators, and heat sinks, but also stainless steel bottles.


Features

  • Inline systems with 9-step temperature control enable outstanding thermal uniformity and high productivity.
  • The brazing chamber is kept in a vacuum to achieve superior brazing quality under a stable atmosphere.
  • A pre-heating chamber is implemented at the front side of the brazing chamber to minimize temperature unevenness in the effective heat zone.
  • The transfer system is of the rack and pinion type to ensure reliable handling.
  • A semi-automatic return line is included as standard for high productivity.

Applications

  • Aluminum heat exchangers such as evaporators, condensers, radiators, oil coolers, and heat sinks
  • Stainless steel bottles

Specifications

Model 420 430
Uniform zone Width [mm] 400 400
Height [mm] 1900 1900
Length [mm] 2400 3300
Loading capacity [kg] 1000 1500
