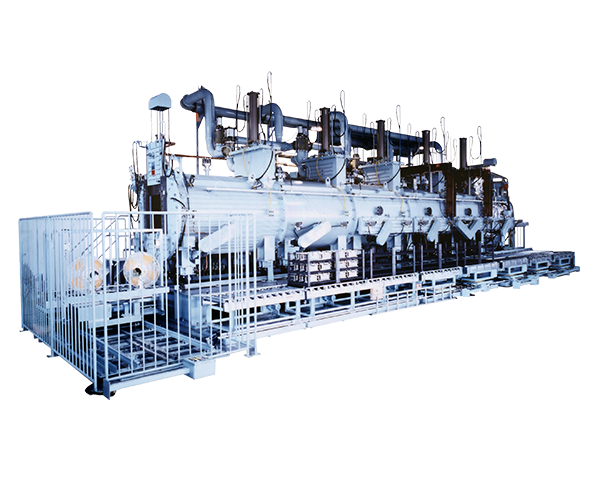

Model：FHH-6090 / FHH-6150
Vacuum Furnace
FHH series are used for various purposes, such as tempering, sintering, brazing of various types of metal.
Product Fillter
Model: FHH-6090 / FHH-6150
Features
- Adopting hot roller carry system, chamber configuration can be multiplied by combining each unitized chambers.
- System configuration is selectable depending on process and throughput, such as preparation chamber (vacuum/atmosphere), preheating chamber (operation 500°C), heating chamber (operation 1150°C), and cooling chamber.
- Adopting double gate valve, each chamber is isolated so that vacuum/atmosphere is completely separated.
- Units can be added depending on process and throughput.
- Inline process is possible, as below."Loading → Heating 1 → Cooling 1 → Heating 2 → Cooling 2 → Unloading.
- Adopting six sectional temperature control system heater (option), temperature uniformity can be 1150±3℃.
Applications
- Vacuum heat treatment : Heat treatment of various metals, brazing
- Sintering : Magnet
Specifications
| Model | FHH-6090C | FHH-6150C | |
| Uniform zone | Width [mm] | 600 | 600 |
| Height [mm] | 600 | 600 | |
| Length [mm] | 900 | 1500 | |
| Loading capacity [kg] | 500 | 1000 | |
