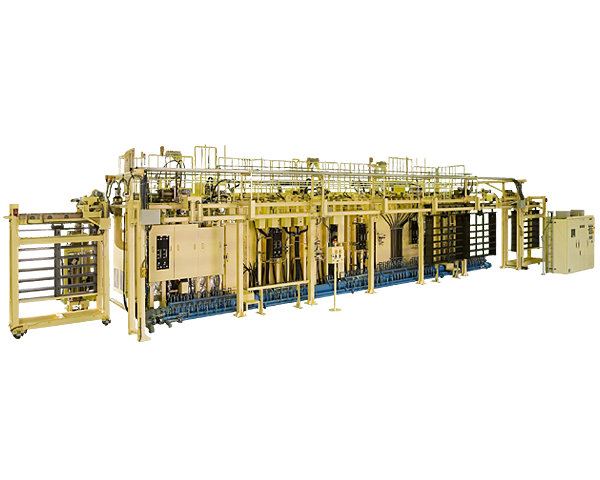

Model：FBC
Vacuum Furnace
This system specializes in the vacuum brazing process to ensure reliable brazing, high productivity and high quality.
Product Fillter
Model: FBC
Features
- The brazing chamber is kept in a vacuum to achieve superior brazing quality under a stable atmosphere.
- A carrier gas system is implemented to maintain a clean atmosphere under low vacuum, equivalent to high vacuum.
- A pre-heating chamber is implemented at the front side of the brazing chamber to minimize temperature unevenness in the effective heat zone.
- The preparation chamber wall is kept at a stable temperature by residual heat to degas and prevent the absorption of moisture and oil.
- The transfer system is of the rack and pinion type to ensure reliable handling.
- A semi-automatic return line is included as standard for high productivity.
Applications
- Nickel brazing for EGR cooler
- Cupper brazing for oil cooler
- Nickel, cupper, silver brazing for various parts
Specifications
| Model | FBC-317C | FBC-418C | |
| Uniform zone | Width [mm] | 310 | 400 |
| Height [mm] | 1300 | 1300 | |
| Length [mm] | 1700 | 1800 | |
| Loading capacity [kg] | 450 | 450 | |
